Welding Machine Series 罐身缝焊机系列
MORE INFO 更多讯息

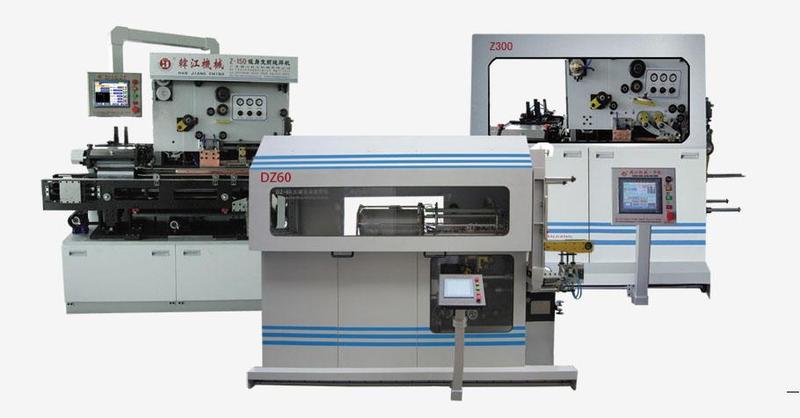

Welding Machine


Thanks to the advanced welding technology from both home and abroad, and more than 20 years of research, we successfully design and manufacture a high-efficiency and stable bodymaker - the Automatic welding machine.

This machine equip with PLC (Programmable Logic Controller) from famous company in the world. Besides of that, this machine also use advanced IGBT convert technique, it makes the frequency can regulate from 120 – 400HZ. The technique we used makes the junction of canbody tougher, more stable and without any burr, it makes minimal reject rate.


Automatic welding machine is use for canbody welding of food can, chemical paint can, aerosol can and petroleum can. This is the ideal choice for canmaker because of its air impermeability, high tensile, appearance, stable and safe control and easy maintenance.


Thechnical specification:


Model

Z300

Z200

Z150

DZ60

FB16-5D

FH10-3AL

Capacity

250-300

150-200

80-100

15-60

30-60

20-70

Diameter

52-155

52-155

52-165

150-300

153-420

65-290

Height

70-270

50-270

45-270

200-400

100-500

50-500

Plate

0.14-0.30

0.14-0.30

0.16-0.30

0.15-0.6

0.20-0.60

0.16-0.38

Copper

1.24-1.38

1.24-1.38

1.38-1.5

1.38-1.6

1.38-1.5

1.38-1.5

Speed

45

30

26

15-30

18

14

Frequency

100-450

100-300

80-260

80-260

80-260

80-260

Weight

2500

2350

2000

4000

1665

1100

Size

2050*1600*1800

2050*1600*1800

2050*1600*2000

3200*2250*2430

1650*1600*1900

1200*1200*1800

Unit: Capacity-Cans/min, Diameter-mm, Height-mm, Weight-kg, Size-mm. Plate-mm, Copper-mm, Speed-m/min,


缝焊机

      韩江机械通过借鉴国内外先进的焊接技术,并经过全体技术人员20多年的奋斗,在反复实践、改进的基础上,成功的开发一种高效、可靠的制罐设备全自动电阻缝焊机

制罐设备采用世界知名公司的可编程序控制器控制,同时运用先进的IGBT变频技术,使频率从120-400HZ连续可调,令罐身焊缝点紧密、牢固、无毛刺,可大大地提高成品率。

全自动电阻缝焊机适用于各种食品饮料罐、化工油漆罐、喷雾压力罐、机油罐等三片罐罐身的焊接,且具有焊缝气密性好、抗拉强度高、外观漂亮、控制方式安全可靠、操作维护简单等优点,是制罐行业中理想的空罐制罐设备



     韩江机械缝焊机三片罐生产线中重要的组成部分,在市场上,受到国内外客户的高度评价,是一款优质的制罐设备


主要技术参数:


型号

Z300

Z200

Z150

DZ60

FB16-5D

FH10-3AL

产量(罐/分钟)

250-300

150-200

80-100

15-60

30-60

20-70

罐径(毫米)

52-155

52-155

52-165

150-300

153-420

65-290

罐高(毫米)

70-270

50-270

45-270

200-400

100-500

50-500

材料厚度(毫米)

0.14-0.30

0.14-0.30

0.16-0.30

0.15-0.6

0.20-0.60

0.16-0.38

铜线直径(毫米)

1.24-1.38

1.24-1.38

1.38-1.5

1.38-1.6

1.38-1.5

1.38-1.5

速度(米/分钟)

45

30

26

15-30

18

14

频率(赫兹)

100-450

100-300

80-260

80-260

80-260

80-260

重量(公斤)

2500

2350

2000

4000

1665

1100

尺寸(毫米)

2050*1600*1800

2050*1600*1800

2050*1600*2000

3200*2250*2430

1650*1600*1900

1200*1200*1800
